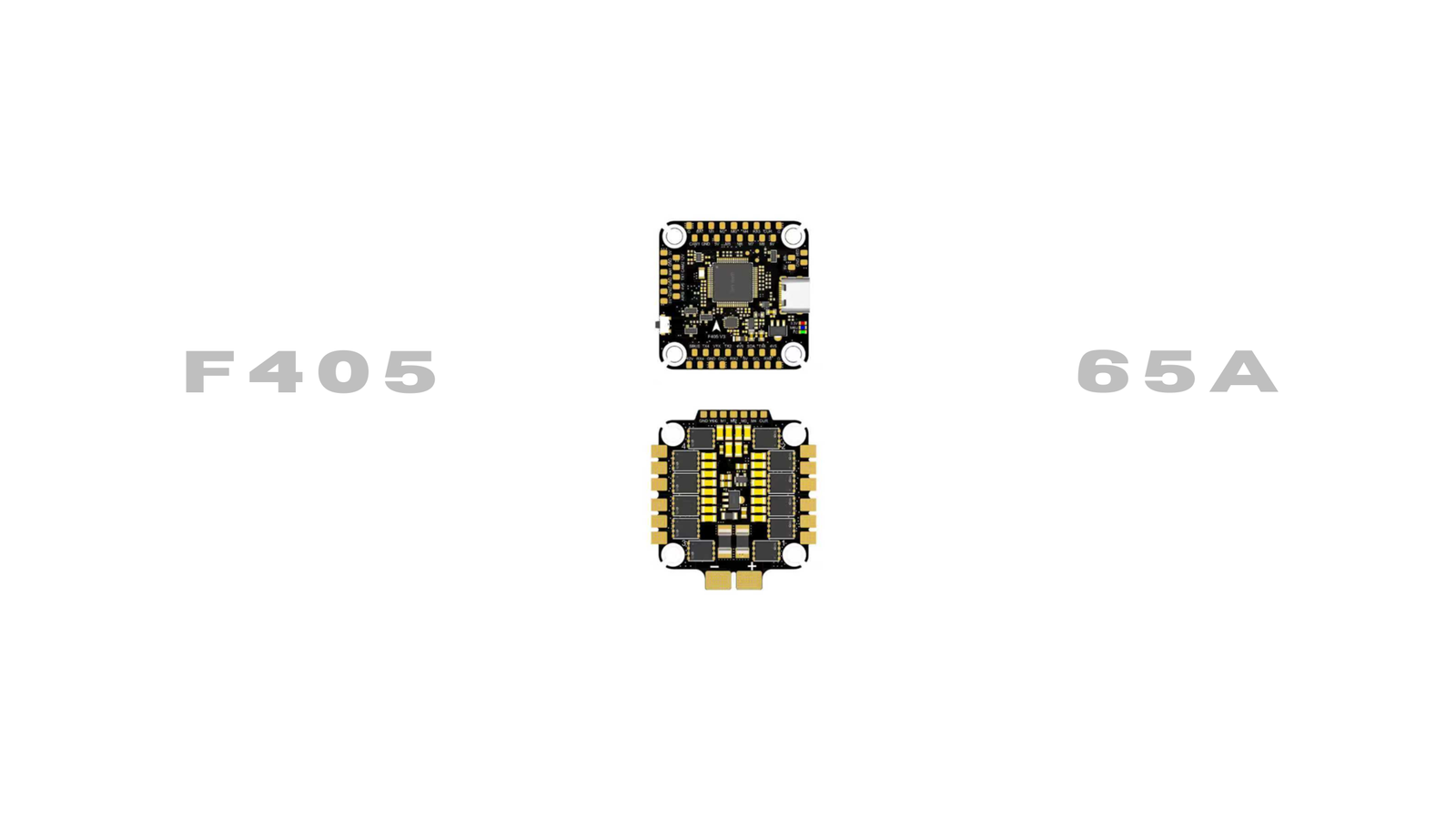

FC&ESC Stack F405 V3 BLS 65A

December 31, 2025

Flight Controller (FC) Parameters

Item	Specification
Flight Control Dimensions	39.8 × 38.7 × 7.8 mm
Net Weight (FC)	10 g
Mounting Hole Spacing	30.5 × 30.5 mm, φ4 mm
MCU	STM32F405RGT6
IMU (Gyro)	ICM42688P
Barometer	SPL06
BEC Output	5V / 3A; 12V / 2.5A
Storage	16 MB
Input Voltage	3–8S
Firmware	GETFUNF405V3
UART Serial Ports	6
SBUS Serial Port	UART3
DJI Air Unit Plug	6-Pin DJI Air Unit Plug
External Device Direct Plug	Supported
Supported Flight Controller Firmware	BetaFlight (Default), iNAV, ArduPilot

Item	Specification
ESC Size	45.5 × 41.5 × 6.4 mm
ESC Net Weight	15.05 g
Mounting Hole Spacing	30.5 × 30.5 mm, φ4 mm
Continuous Current	65 A
Maximum Current	80 A
Input Voltage	3–6S
Current Ratio	100
ESC Firmware	BLHeli_S E_X_40
Assistant Software	BLHeliSuite 16.7.14.9.0.3
Drive Signal Support	PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
