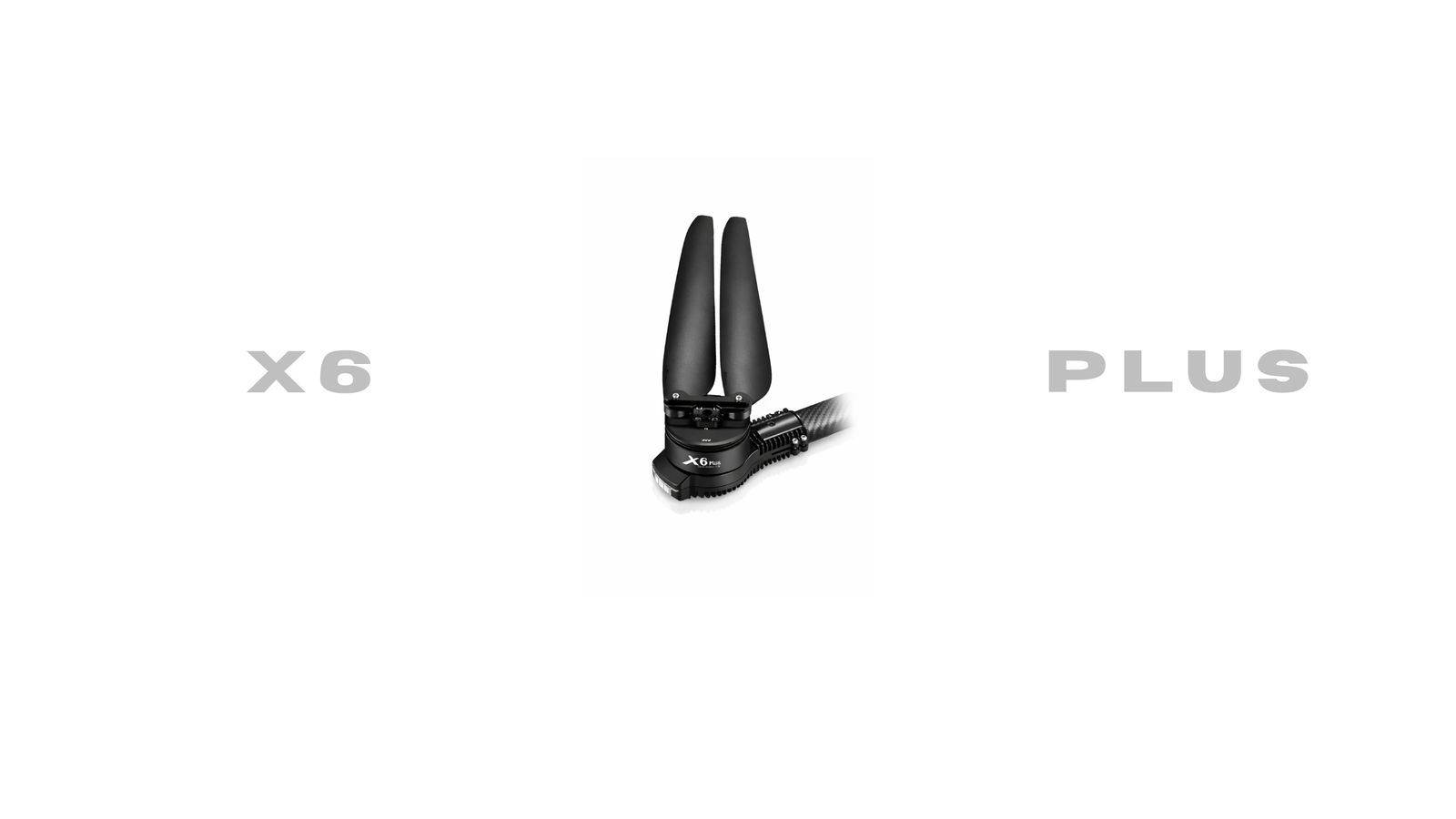

X6 Plus

Specifications

Item	Value
Product Name	X6 PLUS
Max Thrust	11.8 kg/axis (46 V, sea level)
Recommended Takeoff Weight	3.5–5.5 kg/axis (46 V, sea level)
Recommended Battery	12–14S (LiPo)
Operating Temperature	-20 to 50 °C
Total Weight	790 g
Ingress Protection	IPX6
Rated Power Input	700 W
Rated Power Output	580 W
Motor KV Rating	150 rpm/V
Stator Size	62 × 18 mm
Powertrain Arm Tube Outer Diameter	30 mm
Bearing	Waterproof
ESC Recommended LiPo Battery	12–14S (LiPo)
PWM Input Signal Level	3.3 V / 5 V
Throttle Signal Frequency	50–500 Hz
Operating Pulse Width	1050–1950 μs (fixed / non-programmable)
Max Input Voltage	61 V
Max Input Current (short duration)	80 A (non-hermetic, ambient temperature 60 °C)
BEC	No
Propeller Diameter × Pitch	MFP 24 × 8.0

Technical Parameters (46 V / 12S LiPo, Propeller: MFP 24×8.0)

Throttle	Thrust (g)	Current (A)	Power Input (W)	Speed (RPM)	Efficiency (g/W)	Torque (N·m)	Power Output (W)	Temperature (°C)
35%	1499	2.4	112.9	1960	13.2	0.49	88.1	–
37%	2001	3.6	168.6	2254	11.9	0.59	134.3	–
39%	2498	4.9	228.4	2509	10.9	0.72	184.6	–
42%	2498	4.9	228.4	2509	10.9	0.72	185.9	–
45%	2997	6.3	293.3	2740	10.2	0.81	240.0	–
48%	3500	8.0	371.3	2964	9.4	0.92	305.0	–
51%	4001	9.7	449.0	3158	8.9	1.02	370.3	–
54%	4998	13.5	623.5	3528	8.0	1.15	515.8	–
57%	5500	15.6	723.1	3705	7.6	1.25	599.4	–
60%	6003	17.6	815.1	3870	7.3	1.38	676.6	–
63%	6500	19.9	919.7	4017	7.0	1.46	763.9	–
66%	7005	22.1	1021.9	4163	6.8	1.55	848.3	–
69%	7504	24.9	1150.9	4308	6.5	1.72	953.9	–
72%	7999	27.4	1267.4	4460	6.3	1.82	1047.9	–
75%	8999	32.9	1522.9	4731	5.9	2.10	1255.4	–
78%	9505	36.1	1671.1	4866	5.7	2.28	1372.8	–
81%	10000	38.6	1787.8	4960	5.6	2.34	1462.2	–
84%	10503	42.6	1970.1	5113	5.3	2.49	1606.1	–
87%	10994	45.5	2104.5	5221	5.2	2.64	1709.4	–
90%	11494	48.8	2258.3	5339	5.1	2.77	1828.2	–
100%	11852	51.8	2392.1	5439	4.9	3.25	1853.1	–

Measurement note: The above data is measured by changing the throttle input to adjust thrust under 25 °C and sea-level conditions.
