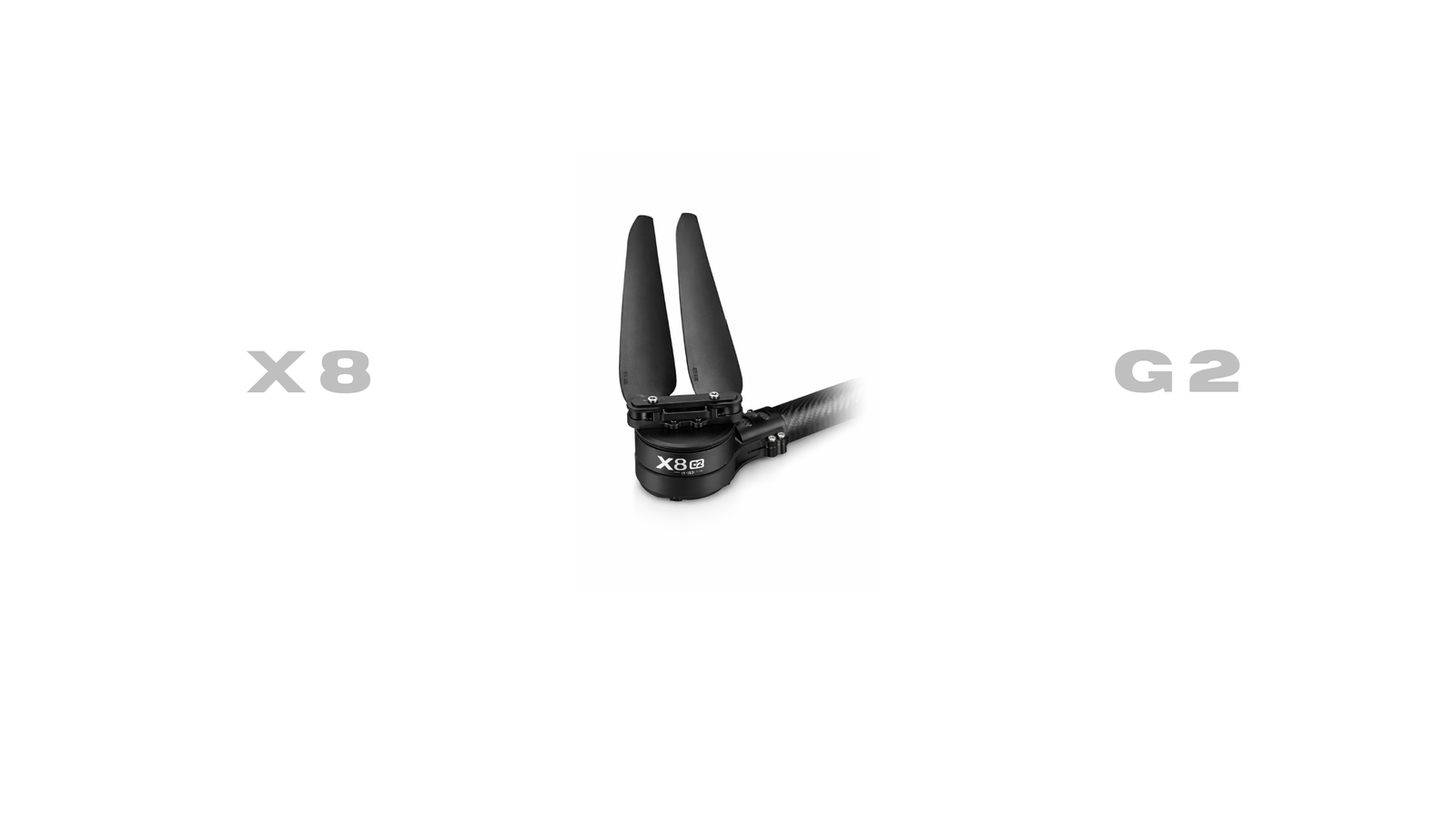

X8 G2

Overview

• New-generation integrated drone propulsion system, refined from the mature X8 platform.
• Specifically designed for small and medium-sized drones.
• Single-axis rated thrust: 5–7.5 kg.
• Maximum flight speed: up to 20 m/s (claimed 40% increase).
• Paired with the MFP 30×11S folding propeller.
• Supports dual-throttle control (PWM + CAN).
• Ingress protection: IPX6.

Propulsion System Specifications

Item	Value
Product Name	X8 G2 Propulsion System
Model	X8 G2
Max thrust	17.5 kg (sea level)
Recommended takeoff weight per axis	5–7.5 kg (sea level)
Efficiency of recommended takeoff weight	9.7–8.4 g/W
Compatible lithium battery	12S–14S (LiPo)
Rated voltage	14S–54 V / 12S–46 V
Input voltage	18–63 V
Tube outer diameter	D35 / D40 mm
Weight (with cable and props)	1095 g*
Cable specification	Power cable: 14AWG 905 mm*; Signal cable: 915 mm*
Operating temperature	-20 to 50 °C
Ingress protection	IPX6
Rated power input	920 W
Rated power output	810 W
Pinout	Black–GND, White–PWM & Yellowe–GND, Gray–CH, Green–CL

ESC Specification

Item	Value
Model	80A-FOC
Communication protocol	Cyphal (UAVCAN)
Peak current (3 seconds)	80 A (3 s)
Continuous current	20 A
Throttle travel calibration	Nonsupport
Double throttle signal	PWM + CAN
Operating pulse width	1050–1950 μs
Failure storage & log	Supported

Motor Specification

Item	Value
Model	8120-100KV
Slot & Pole	36N40P
Stator diameter	81 × 20 mm
Motor diameter	88.6 mm

Propeller Specification

Item	Value
Model	MFP 30×11S (Folding propeller)
Total weight	193 g*
Material of blades	Carbon fiber reinforced plastics
Single blade weight	54.5 g*

Optional Propeller Specification

Item	Value
Model	MFP 30×11 (Folding propeller)
Total weight	188 g*
Material of blades	Carbon fibre-reinforced nylon composite material
Single blade weight	51.6 g*
