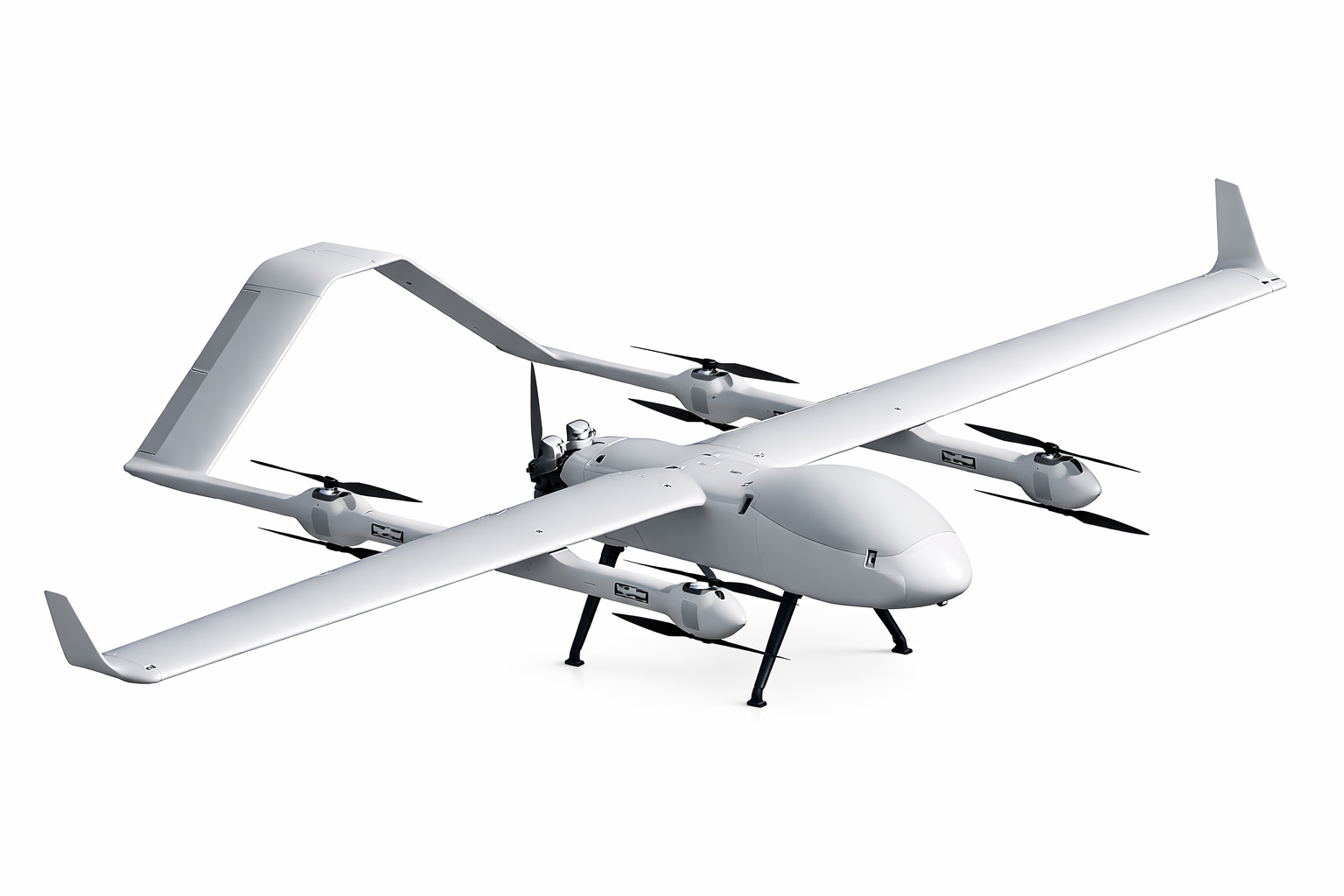

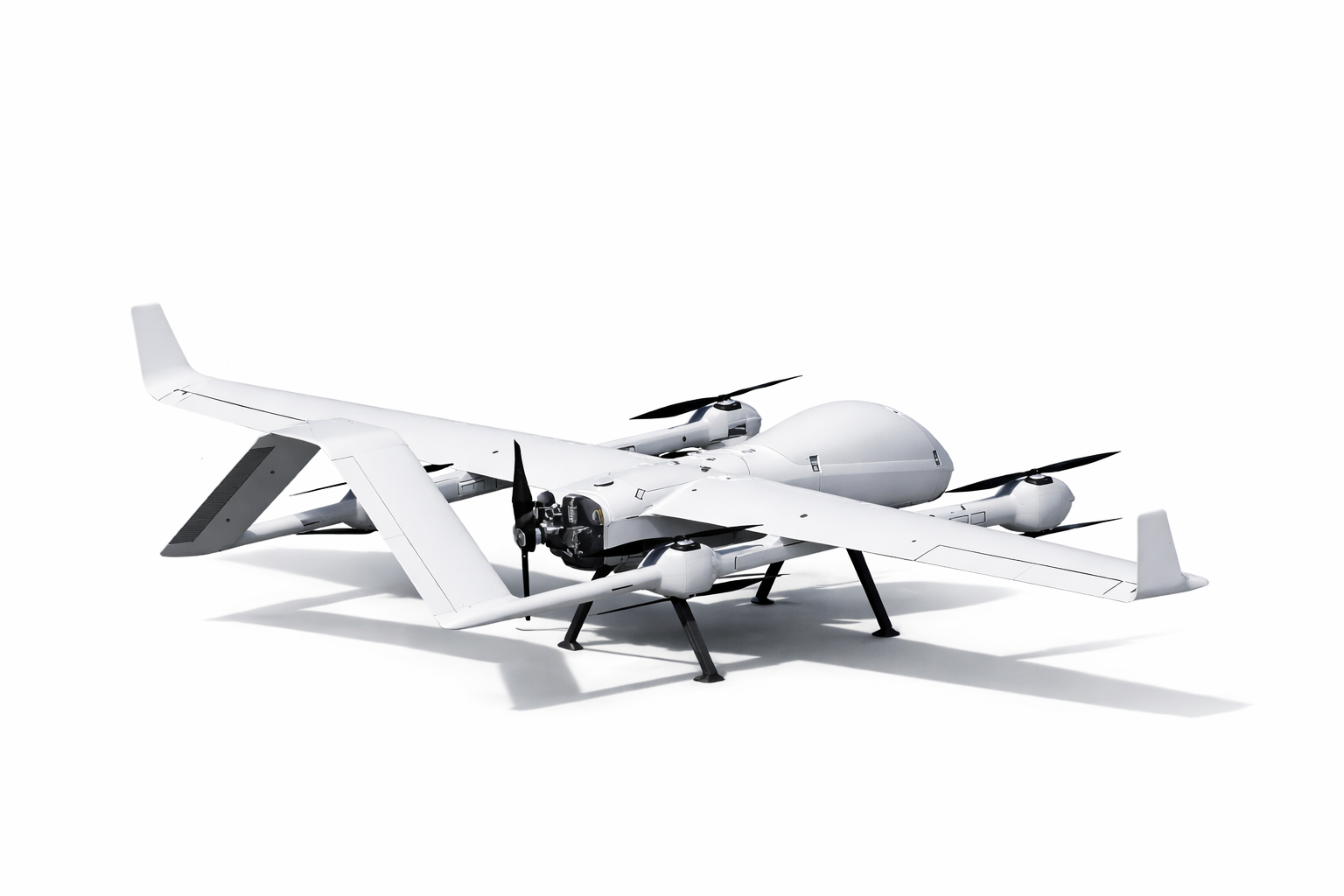

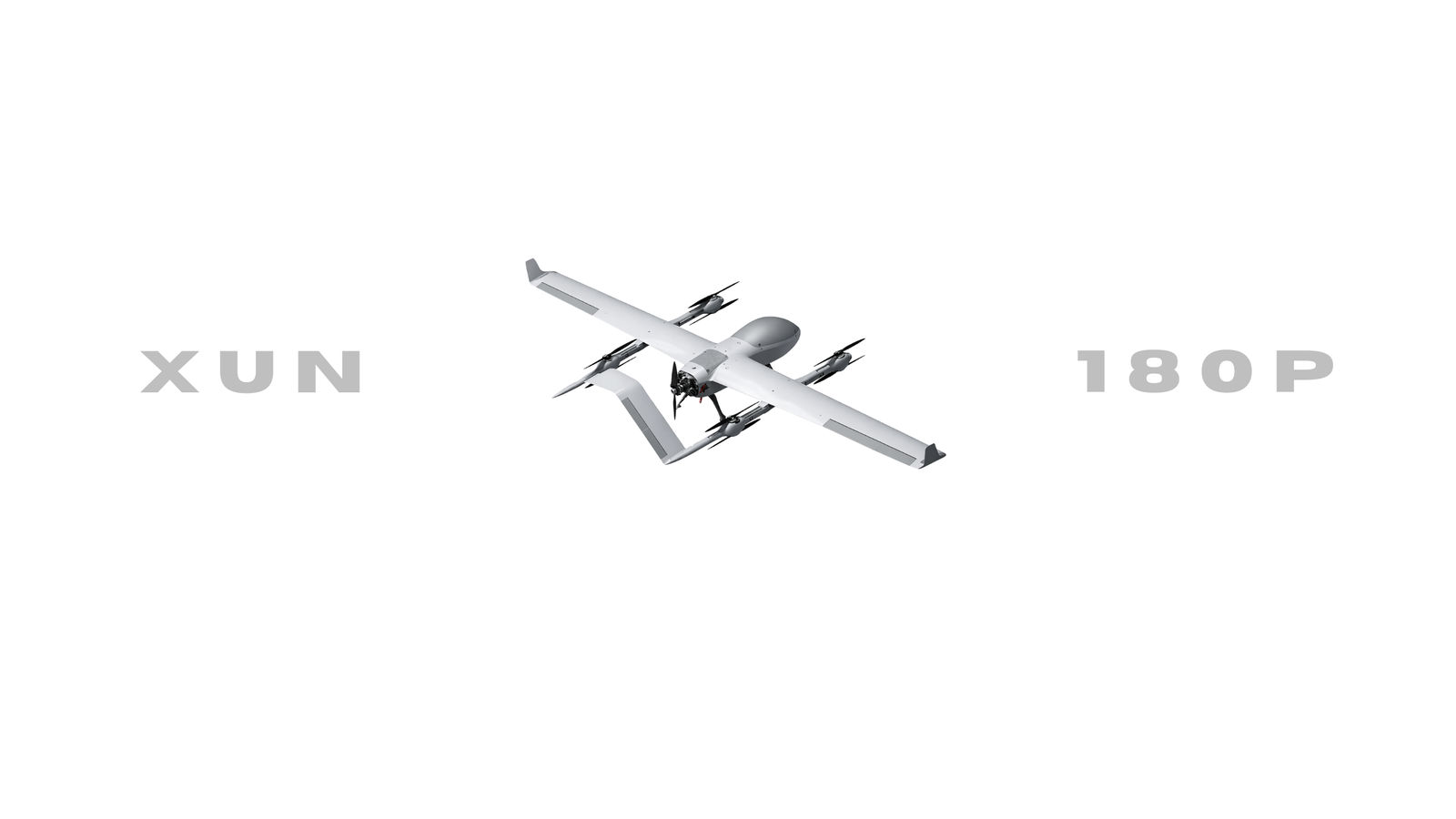

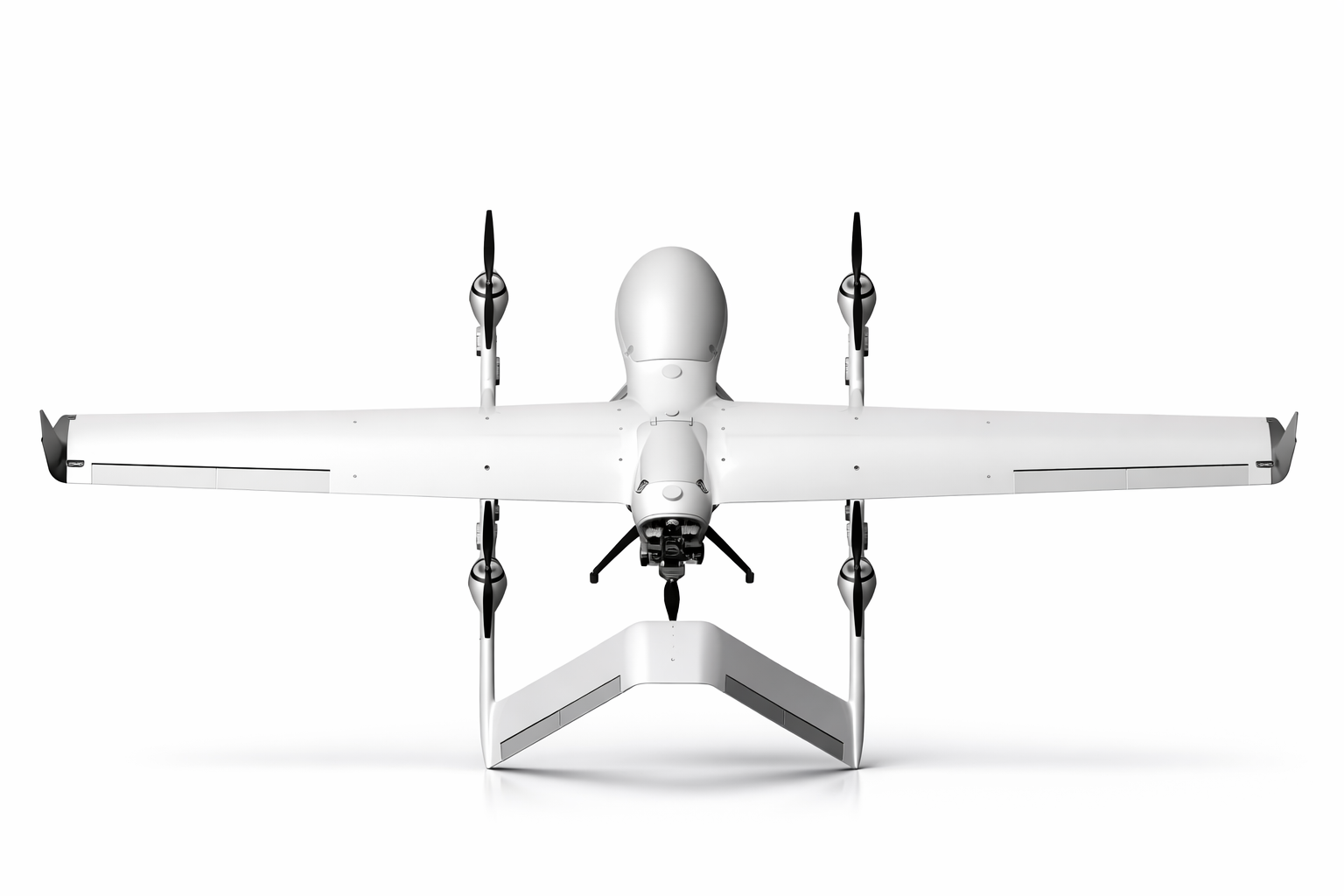

Xun-180p
Gasoline Powered Vertical Takeoff and Landing Fixed-Wing UAV
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Etiam non nisl in velit dignissim mollis a rhoncus dolor. Vivamus egestas condimentum erat, in iaculis nulla blandit ut.
Technical Specifications
| Parameter | Specification |
| Fuselage Length | 3970 mm |
| Wingspan | 7336 mm |
| Maximum Takeoff Weight | 180 kg |
| Maximum Payload | 60 kg |
| Endurance | 8 h @ 40 kg payload; 4 h @ 60 kg payload |
| Cruise Speed | 38m/s |
| Maximum Speed | 50m/s |
| Maximum Control Distance | Remote control (manual control): 1km; Ground station control (depending on the distance of data transmission carried): standard configuration of 30km. |
| Maximum Fuel Capacity | 55 L |
| Maximum Lift Limit | 350m@290CC/engine ; 5500m@390CC/engine |
| Maximum Wind Resistance | 12 m/s (Beaufort force 6) |
| Usage Environment | -10°C to +45°C; light rain |
| Engine | B2G290, integrated engine (electronic fuel injection), 32*16 B2G390, integrated engine (electronic fuel injection), 32*14 |
| Takeoff and Landing Mode | Vertical takeoff and landing |
| Takeoff/Landing Power Battery | 24S1P-12000mAh*4 lithium battery, Parallel |
| GPS | RTK dual antenna |
